TROP:Terrains+Open Space ：于2010年获得委托，为曼谷高端公寓Sansiri设计一个Pyne花园。如前所述，它的位置非常棒。位于市中心繁华地段，距市内最大的购物中心仅5分钟步行路程，地块面积约2900平方米。它也有一个BTS站前的财产，这真的帮助出售住宅。

在便利方面，该项目是完美的。考虑到其他一切对设计师来说是一场噩梦：周围是古老的丑陋建筑的三面，包括一些嘈杂的夜总会，它几乎不是高端的位置。更糟的是，火车站基本上使整个空间看起来更加拥挤。它被设计成一个巨大的结构，长约100米，高3-4层。基本上，这就像在你的门前放置一个巨大的建筑物。与其他周边建筑物一起，我们的项目紧紧围绕四面的混凝土箱体。

Convenience-wise, the site is perfect. Considering everything else, it is a nightmare for designers. Surrounded by 3 sides of old ugly buildings, including some noisy nightclubs, it is hardly a high-end location. To make it worse, the train station basically makes the whole space look even more crowded. It is designed as a huge structure, about a hundred meter long, 3-4 storey high. Basically, it is like placing a huge building right in front of your door steps. Together with other surrounding buildings, our project is tightly trapped among concrete boxes by all 4 sides.

森林 ：
基本上，我们的主要任务是将我们的项目与这些不那么好看的邻居分开。为了将私人空间与繁忙的外部世界分开，我们的第一步是创建一个3米高的墙，顶部有种植者。从外面看，这堵墙看起来像一个普通的直白色大理石墙壁，但从内部看，墙壁变成了一条弯曲的线条，以摆脱四周的感觉空间。绿地位于火车站和公寓之间的战略位置。除了典型的功能性花园之外，还提出了一个拥有10米高树木的城市森林，以减少该电台的影响。在树下，一系列小绿色的“山丘”;从大厅旁边的边界墙一直创建。为了最大限度地增加柔软的表面，山丘上下移动，因此居民可以看到比平坦的花园更多的绿色植物。

The Forest :

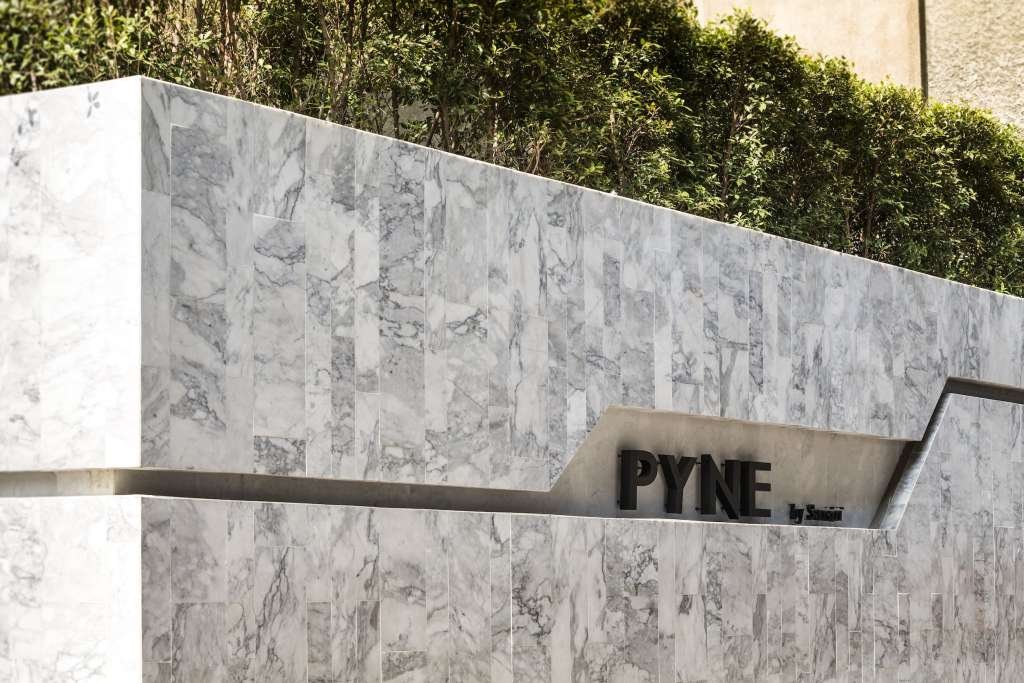

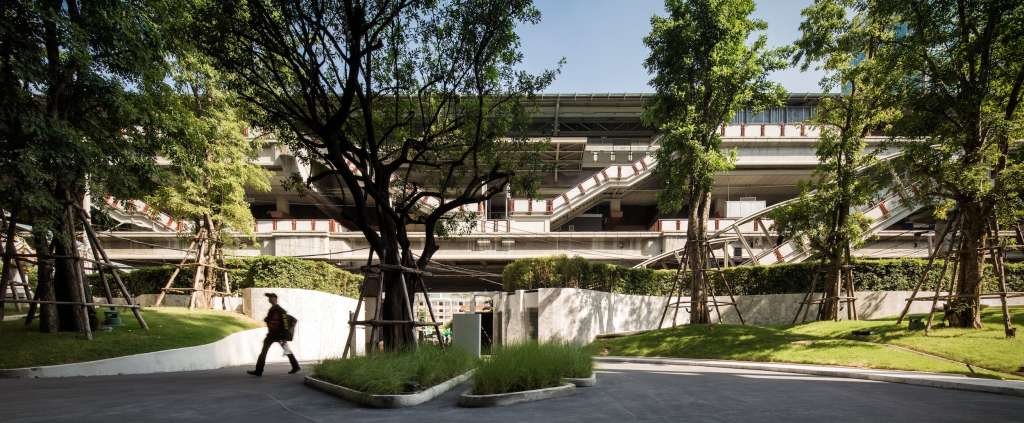

Basically, our main task is to divorce our project from these not-so- good-looking neighbors. In order to separate the private space from the busy outside world, our first move is to create a 3m tall wall with planters on the top. From the outside, the wall appears like a normal straight white marble wall, but, looking from inside, the wall is changed into a curvy line to get rid of the boxy feeling space. Green area is strategically located behind the wall, in between the train station and the condominium. Instead of typical functional garden, an urban forest, with 10m tall trees, are proposed to reduce the impact of the station. Underneath the trees, a series of small green “hills”; are created all the way from the boundary wall right next to the lobby. To maximize the soft surface, the hills move up and down, so the residents can see more greenery than they do flat garden.

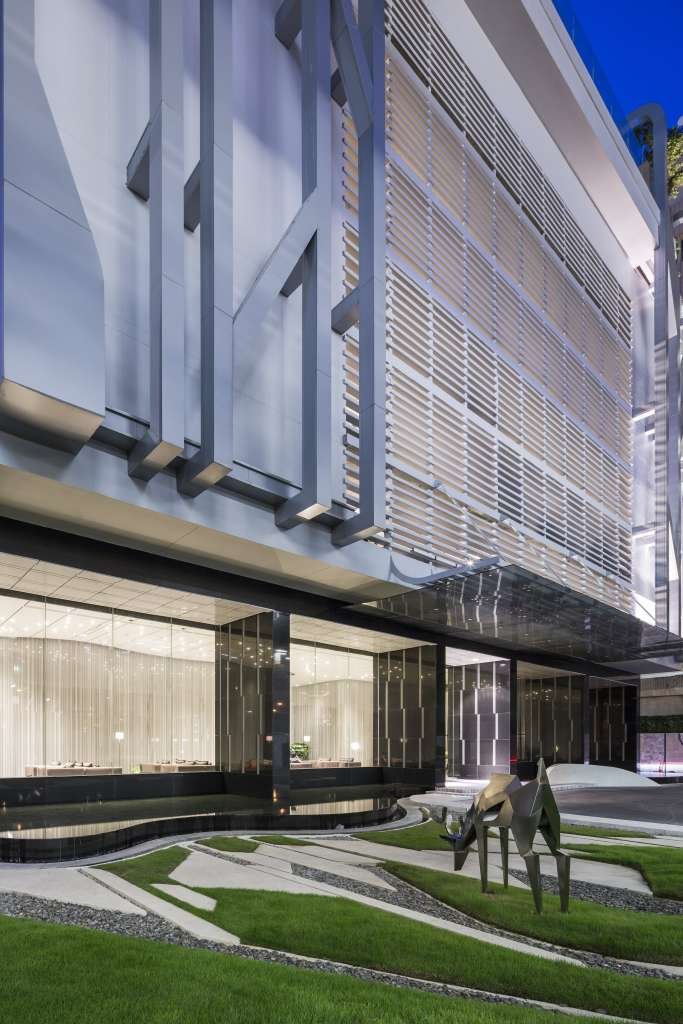

避免了垂直线，取而代之的是有角的圆角。步骤被集成到山上以便于步行，将山丘分成一些地形图案。为了给森林增添活力，我们设计了一些特殊的雕塑，最亲爱的鹿，作为森林的居民。在平坦的地区，一系列混凝土路从物业的一侧到另一侧。绿色草坪和道路之间的对比为居住在上面的居民创造了令人愉快的视觉效果。

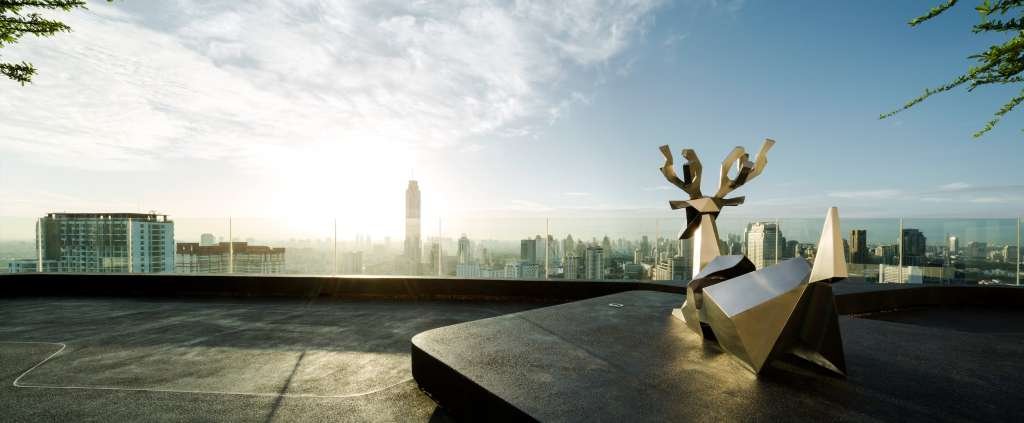

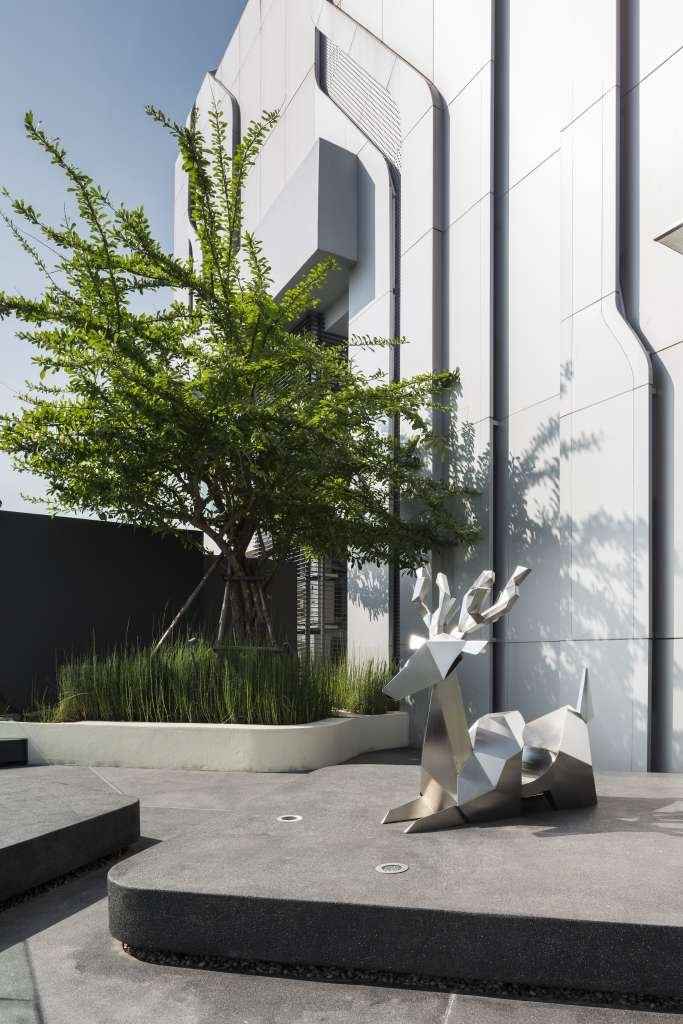

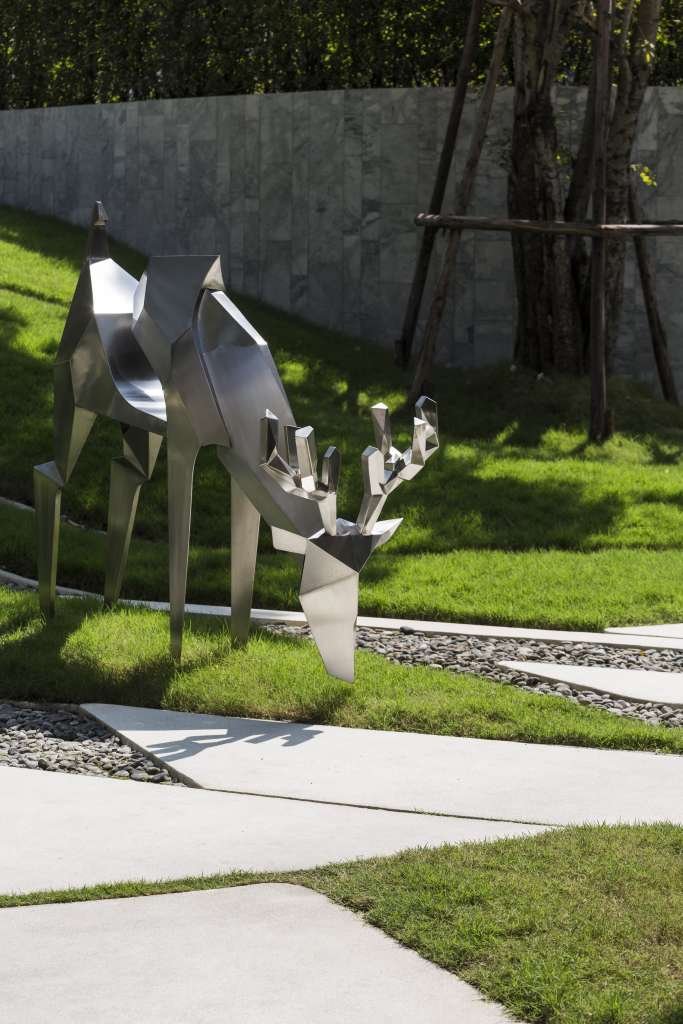

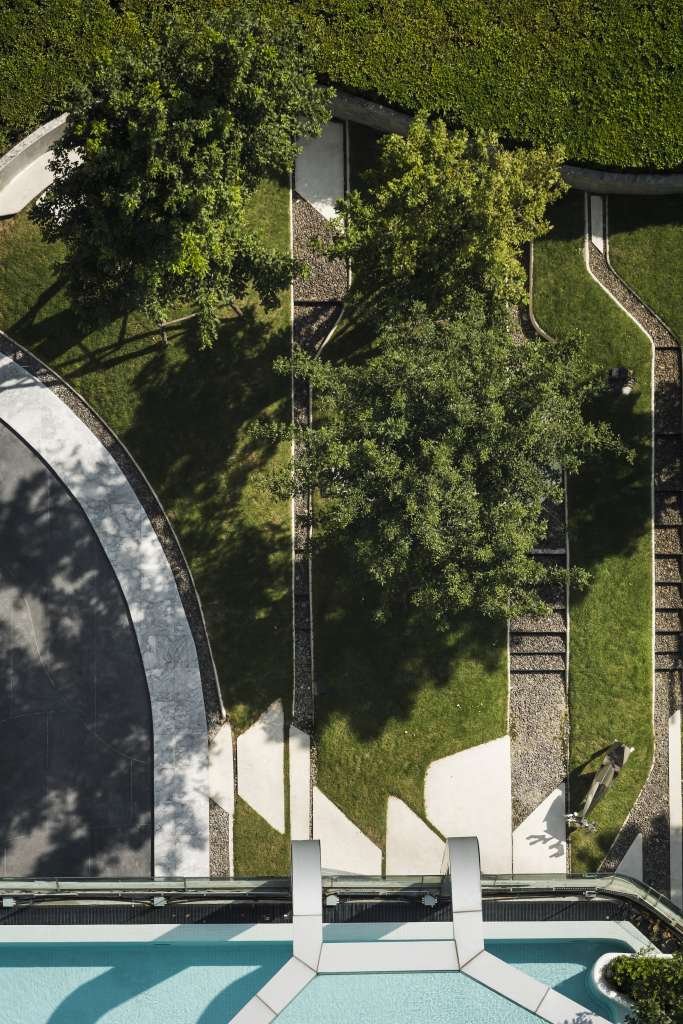

Perpendicular lines were avoided, replaced by angled ones with round corners. Steps are integrated into the hills for the easier walk, dividing the hills into some topographic patterns. To animate the forest, we designed some special sculptures, the Dearest Deers, as the inhabitants of the forest. On the flat area, a series of concrete pathways are orchestrated from one side to the other of the property. The contrast between green lawn and concrete paths creates delightful visual for our residents who live above.

游泳池 ：

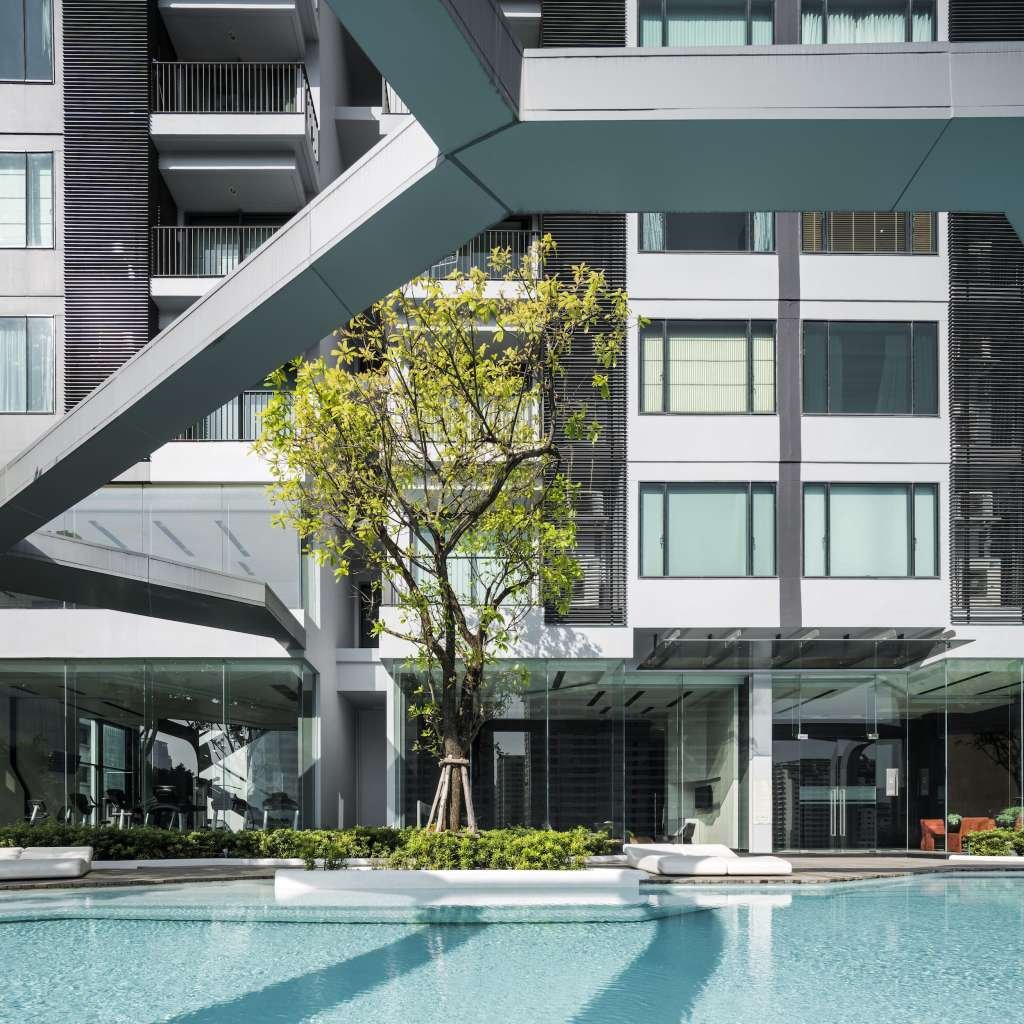

住宅塔楼建在停车场的顶部。通常情况下，停车位的平面图比塔楼要大，左边的区域作为游泳池。上思睿的Pyne泳池也不例外。它被指定在8楼，这也是可以停车的屋顶。该地区是一个长方形的露台，面积约370平方米。

The Pool :
The residential tower is built on top of parking structure. Normally the parking part has a bigger floor plan than the tower, leaving the left over area as its swimming pool. The Pool Pyne by Sansiri is no different. It is designated to be on the 8th floor, which is also the roof of the parking structure. The area is a rectangular shape terrace, around 370 sqm.

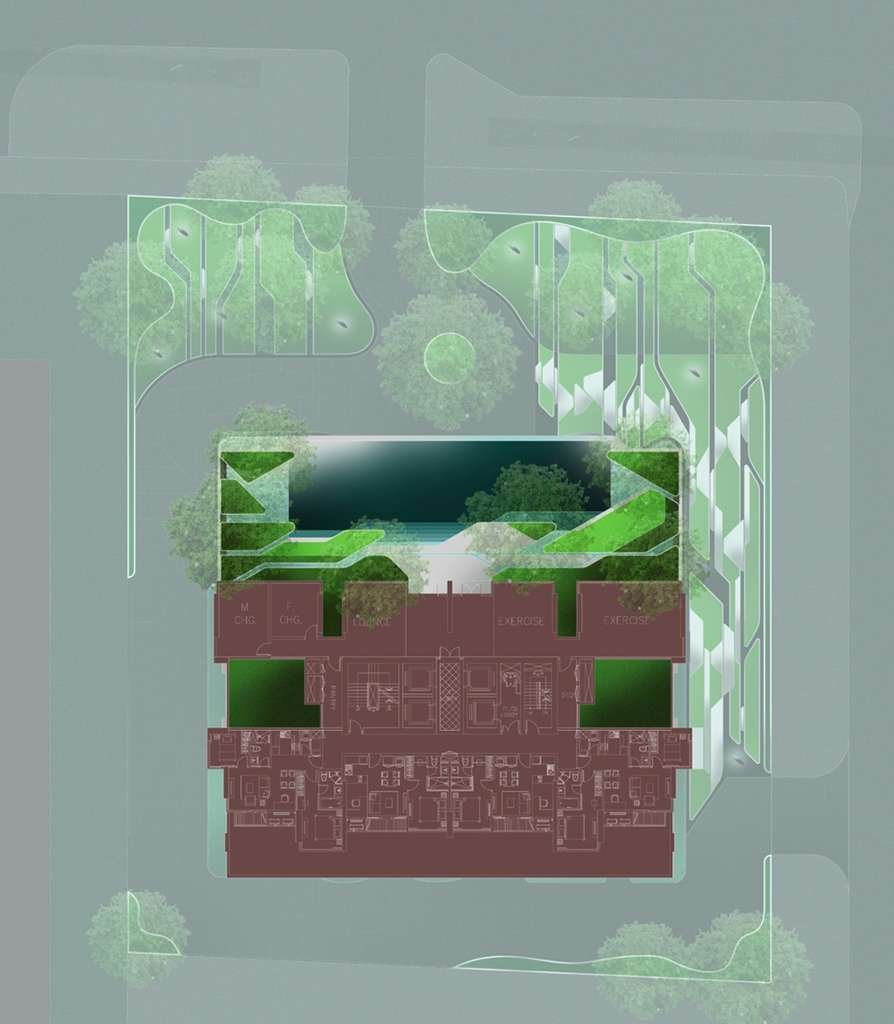

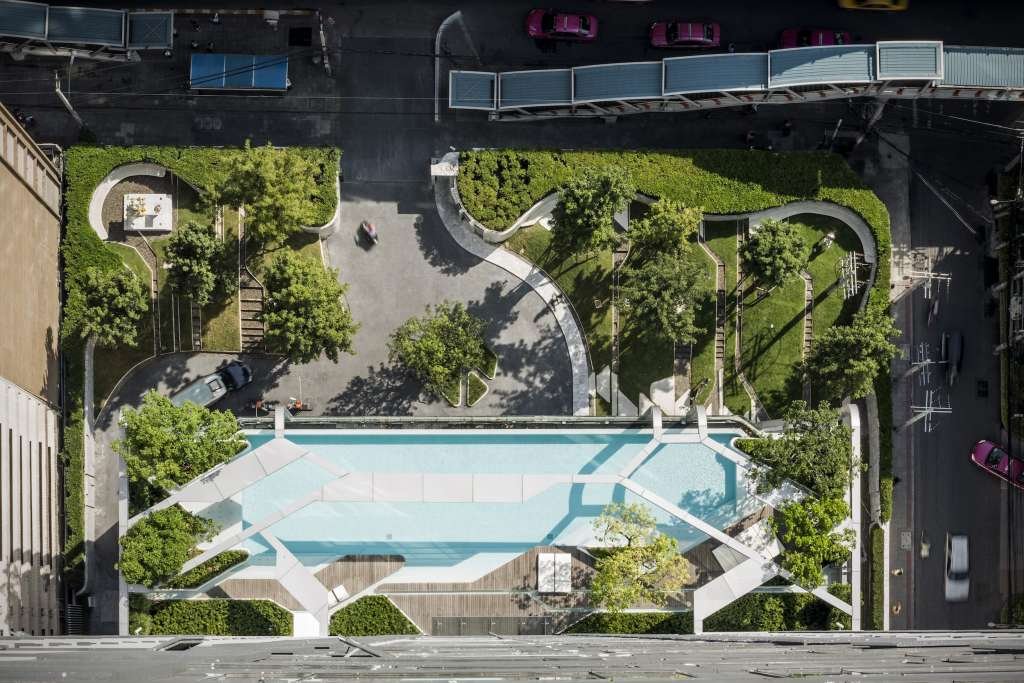

屋顶泳池平面

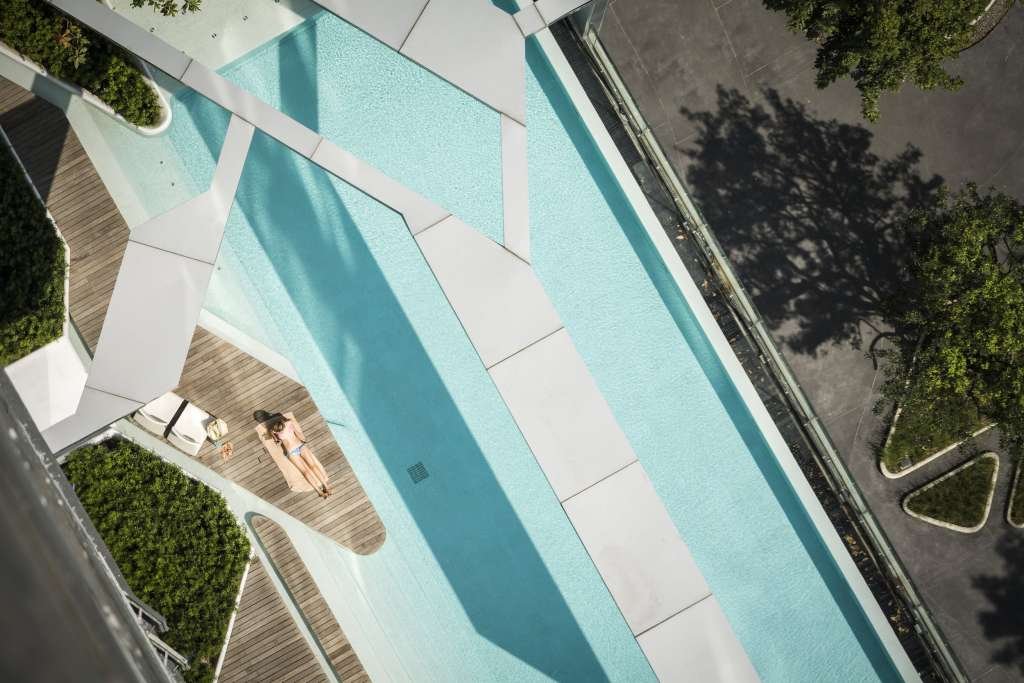

为了摆脱那种四方的感觉空间，我们的第一步是创建一个“松散”的平面图。我们提出了一系列与游泳池融为一体的小型平台，而不是典型的长方形游泳池甲板。避免了垂直线，取而代之的是有角的圆角。一系列“绿色”种植也被插在这里和那里，无缝地结合了所有3种元素：水，梯田和种植。

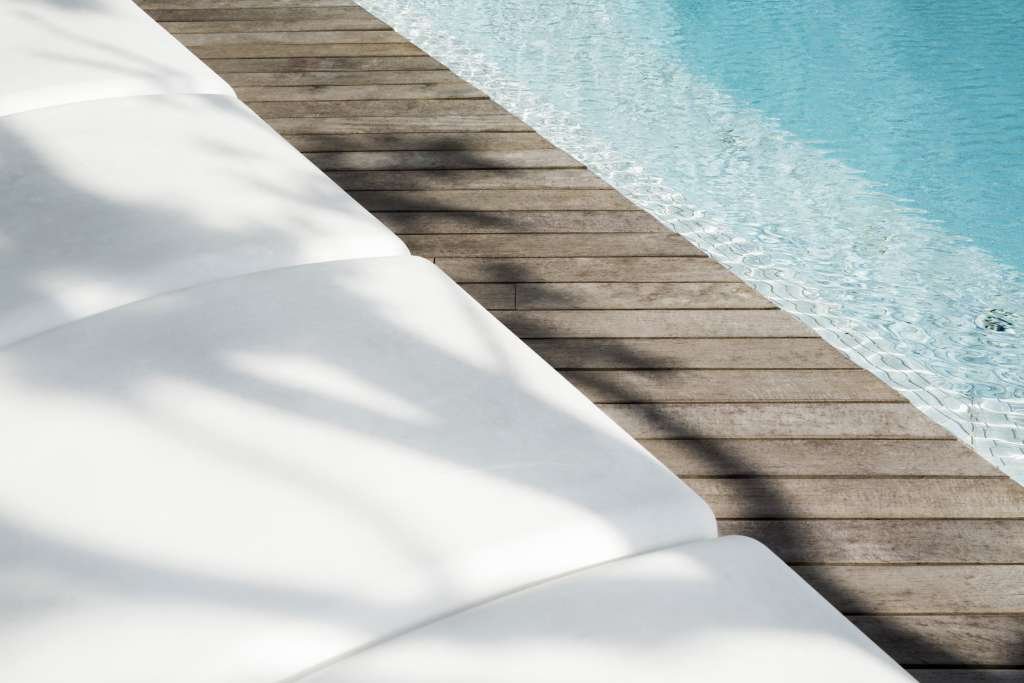

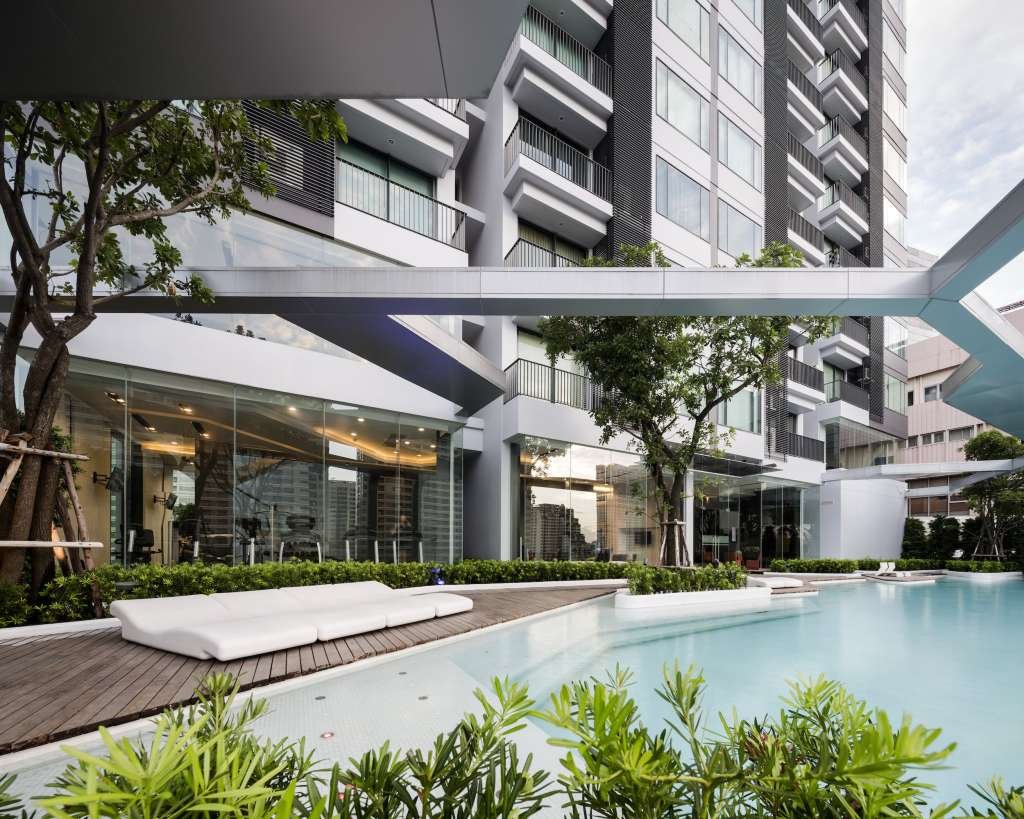

In order to get rid of that boxy feeling space, our first move is to create a “loosed” floor plan. Instead of a typical rectangular pool deck, we proposed a series of smaller terraces integrated with the swimming pool. Perpendicular lines were avoided, replaced by angled ones with round corners. A series of “green”
planters were also inserted here and there, combining all 3 elements, water, terraces and plantings seamlessly.

再一次，曼谷的大部分泳池都有相同的名称。由于它位于屋顶之上，因此被称为“天空池”。第一对情侣听起来非常激动人心，但过了一段时间，它变得无聊。我们的设计任务不仅是设计一个美丽的游泳池，而且还想创造一个独特的景观特征，以识别居民的特征。

Again, most pools in Bangkok share the same name. They are called “Sky Pool” because of its location on top of the roof. The first couple ones sounded very exciting, but, after a while, it got boring. Our design task was not only to design a pretty swimming pool, but we also wanted to create a unique landscape feature that can identify the character of our residents.

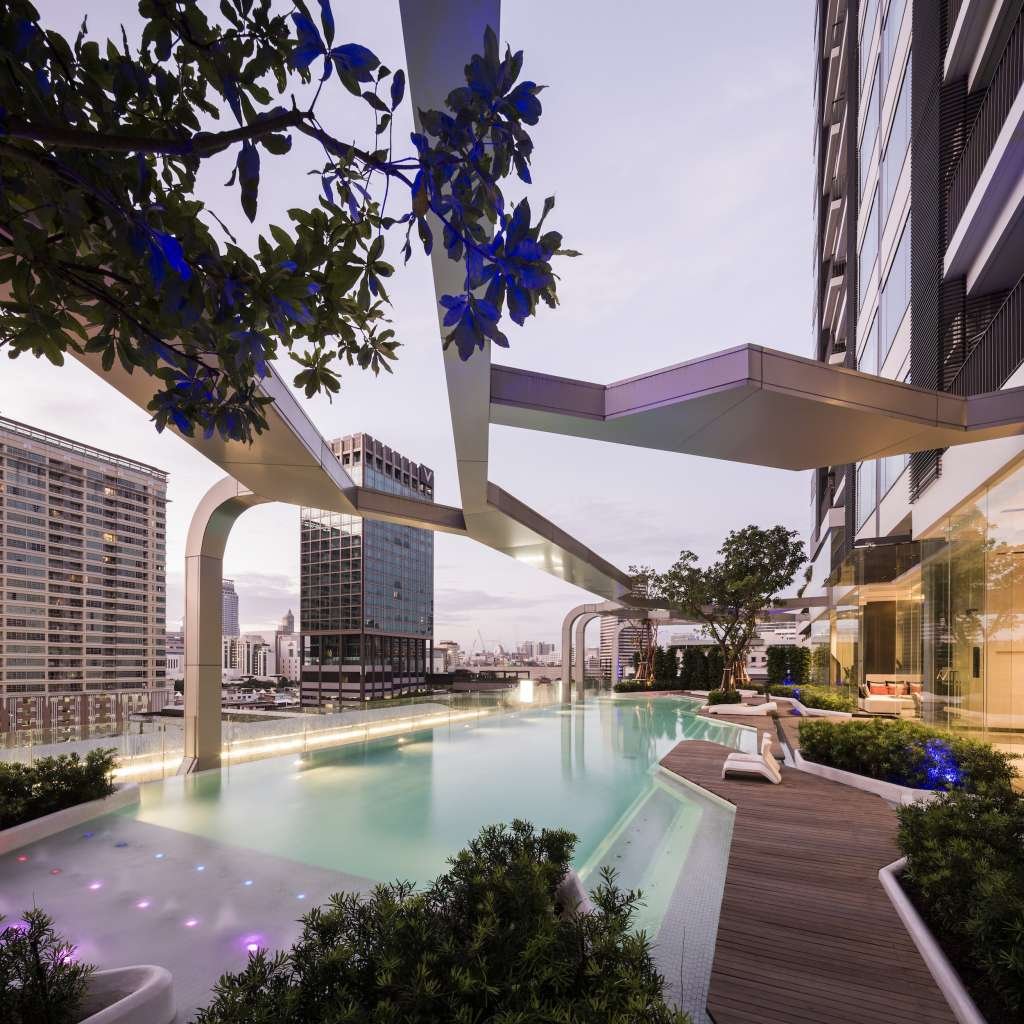

为了让我们的游泳池与其他游泳池不同，建议将“骷髅”作为轻型包层结构，以便将游泳池三维地“框起”。之前，所谓的天池只是建筑顶部的一片平坦的水。当然，游泳运动员可以在户外欣赏美景，但回望大楼时，没有人从下面看到泳池的存在。借助“骨架”，游泳池完全融入了建筑。现在，BTS乘客可以抬头看到车架内的特殊空间。晚上，“骷髅”发光，给这座建筑带来了一些“轻盈”，它在拥挤的周围环境中显得非常需要。

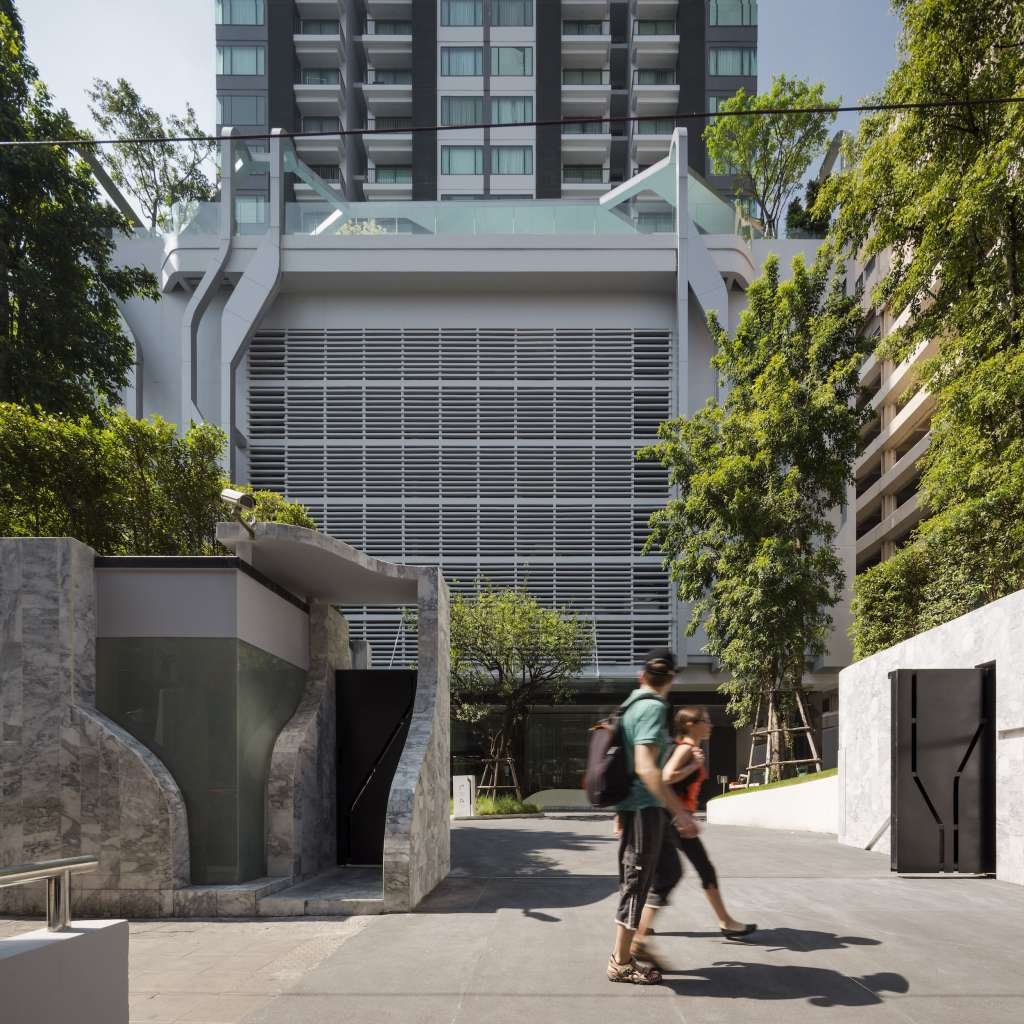

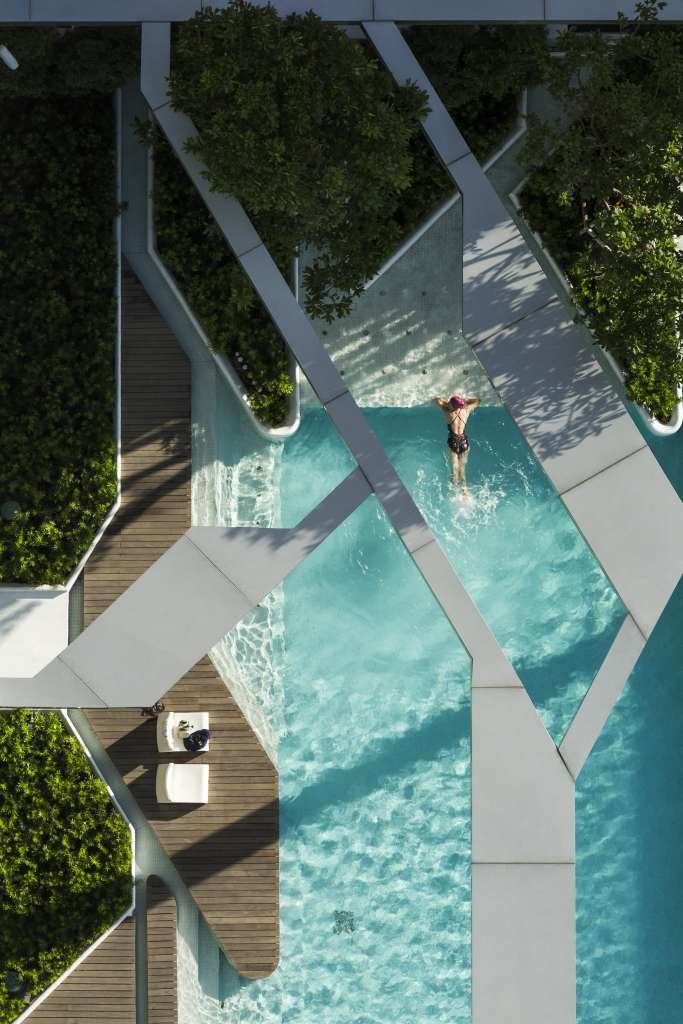

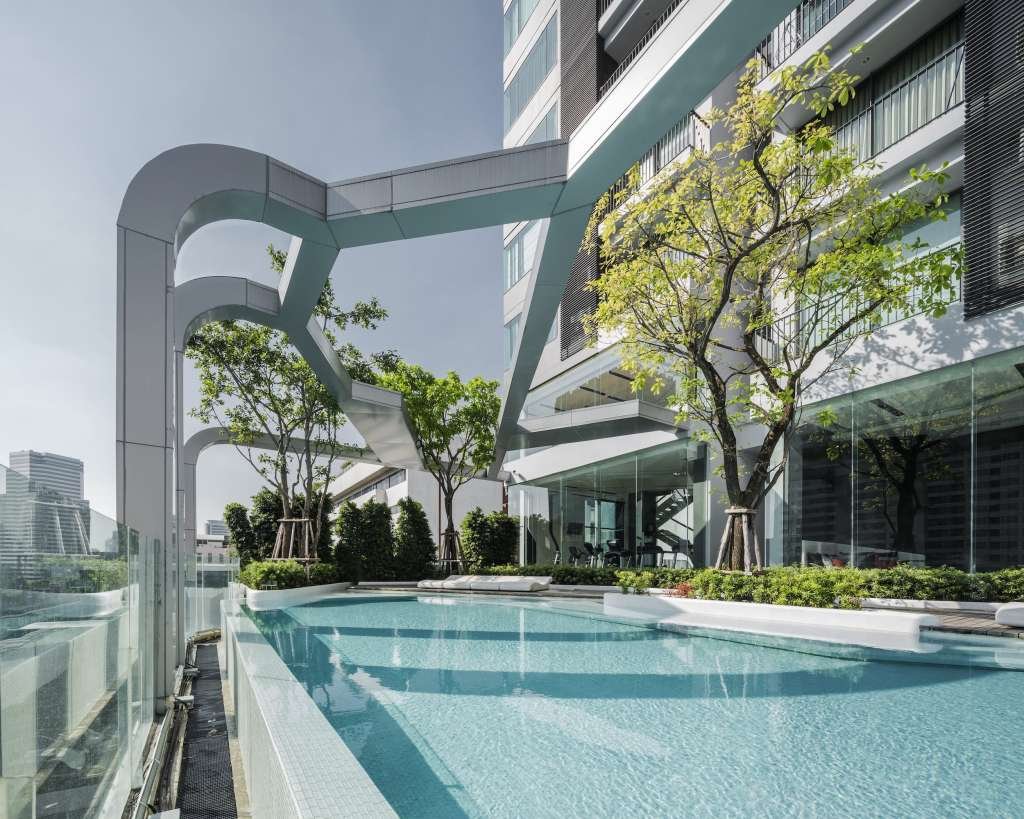

To make our pool difference than others, the “Skeleton”, a light cladded structure, was proposed to “frame” the swimming pool 3-dimensionally. Before, the so-called sky pool is just flat piece of water on top of the building. Sure, swimmers can enjoy a great prospect view outside, but, looking back to the building, nobody recognize the presence of that pool from below. With the “Skeleton”, the pool was fully integrated into the architecture. Now the BTS passengers can look up and see the special space inside the frame. At night, the “Skeleton” glows, giving the architecture some .”lightness” it needs badly in the crowded surrounding.

项目名称: 曼谷PYNE
竣工日期: 2013年
地点:泰国曼谷
景观面积: 2900平方米
客户:上思睿股份有限公司
设计公司: TROP : terrains + open space
建筑设计:帕尔默特纳(泰国)有限公司

Project Name : Pyne
Completion Date : 2013
Location : Ratchathewi, Bangkok, Thailand
Landscape area : 2,900m2.
Client : Sansiri Public Company Limited
Design Company :TROP : terrains + open space
Architect : Palmer and Turner (Thailand) Co.,Ltd.

摄影:维森·通顿尼亚，汀纳普·查瓦特宁
Photographer :  Wison Tungthunya , Tinnaphop Chawatin
